Smart Flood-Sensing Delineator · Concept Design

Flood-Sensing LED Delineator
Proposal for Road Authorities

A delineator beside a roadside storm drain or manhole senses flooding, warns on site with a red flash and alerts the control center and duty staff in real time. The post also marks the location of submerged drains so blocked inlets can be cleared quickly.

Download proposal (PDF) Contact us

This page is shared privately with the recipients of the link. Concept design — specifications and figures may change after pilot validation. (Sept. 2026)

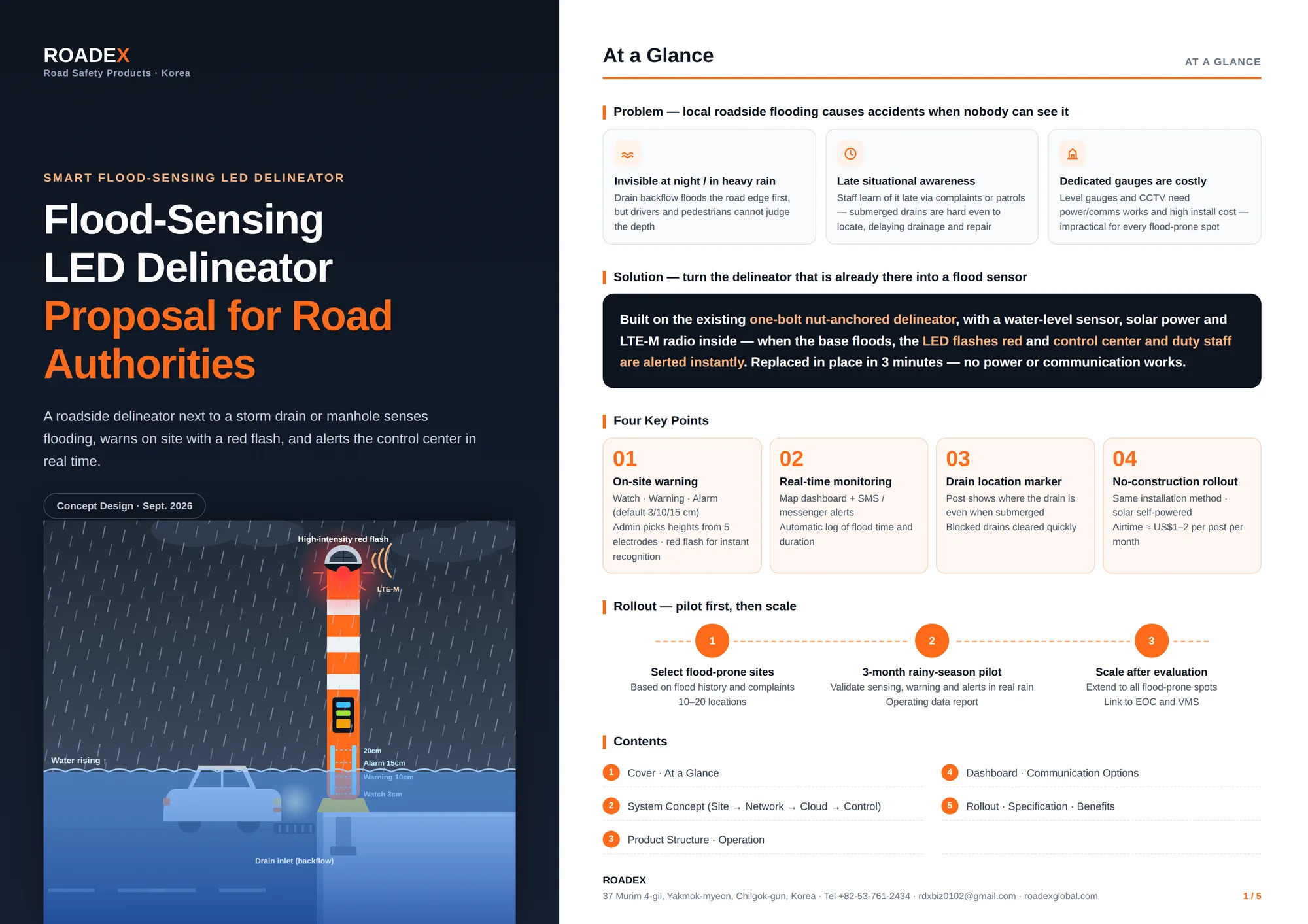

Page 1 — Cover · At a Glance
1. Cover · At a GlanceProblem, solution concept, four key points, rollout

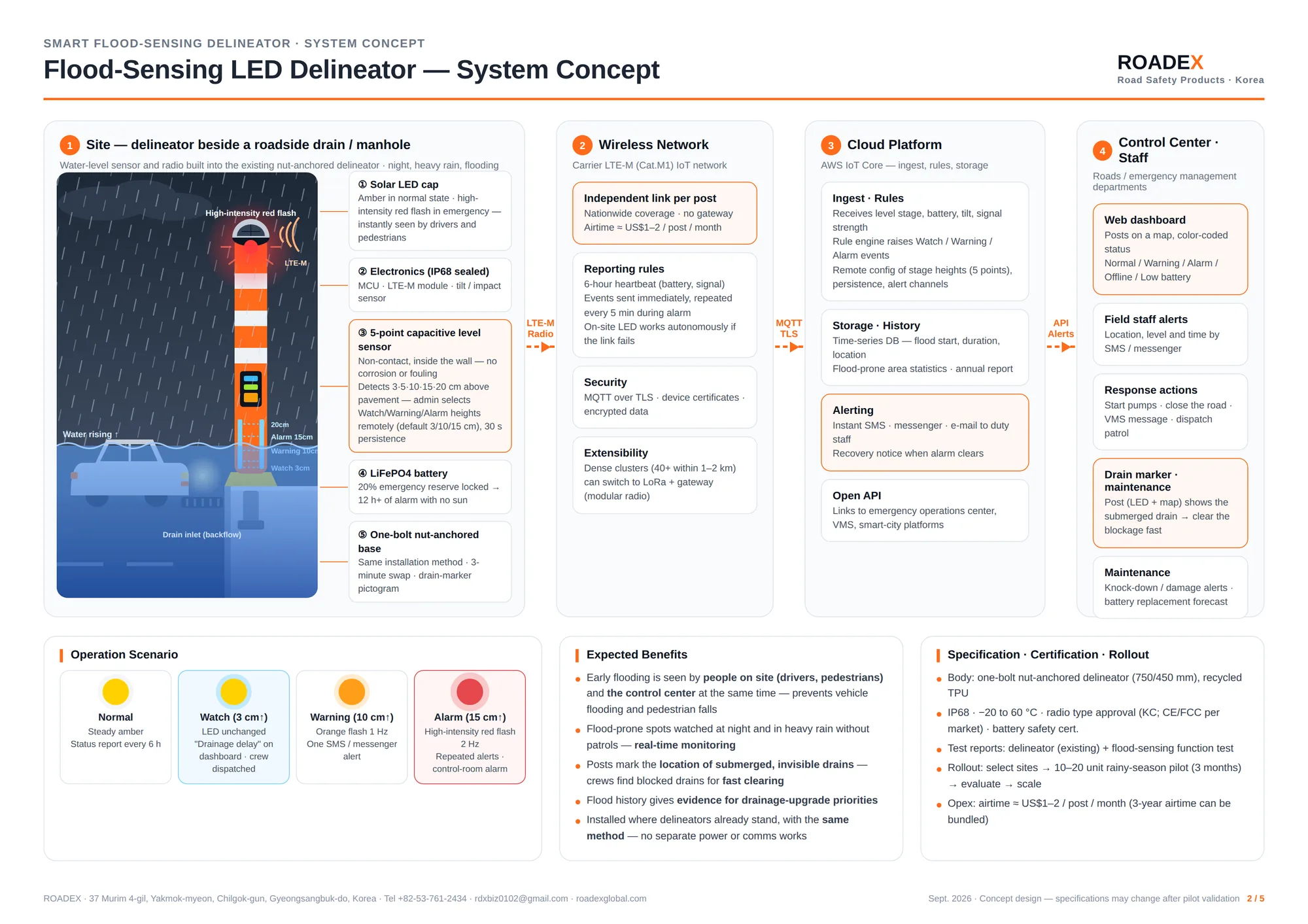

Page 2 — System Concept
2. System ConceptSite → LTE-M → cloud → control center flow and operation scenario

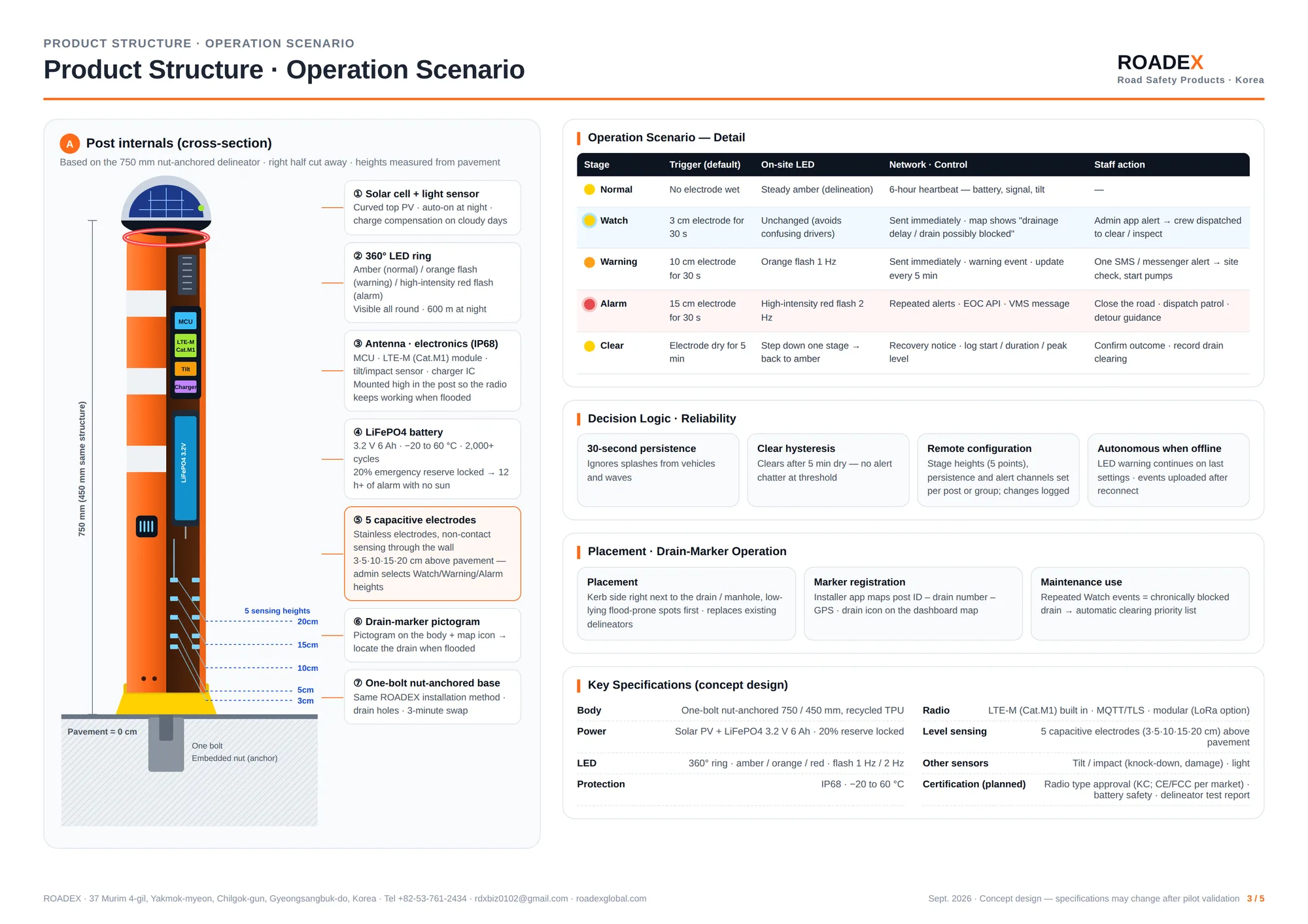

Page 3 — Product Structure · Operation
3. Product Structure · OperationCross-section, 5-point level electrodes, stage logic

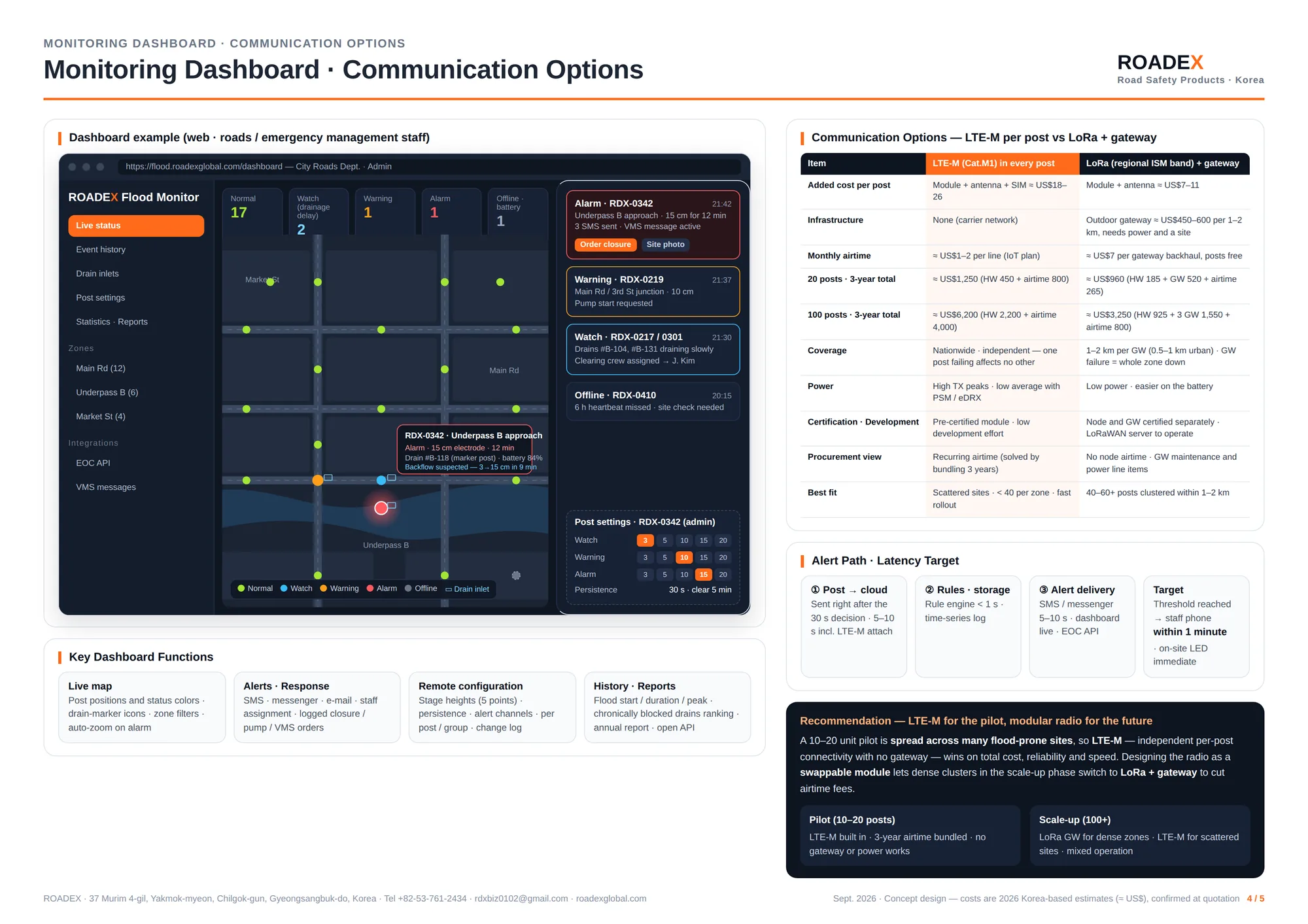

Page 4 — Dashboard · Communication Options
4. Dashboard · Communication OptionsDashboard example, LTE-M vs LoRa, alert latency target

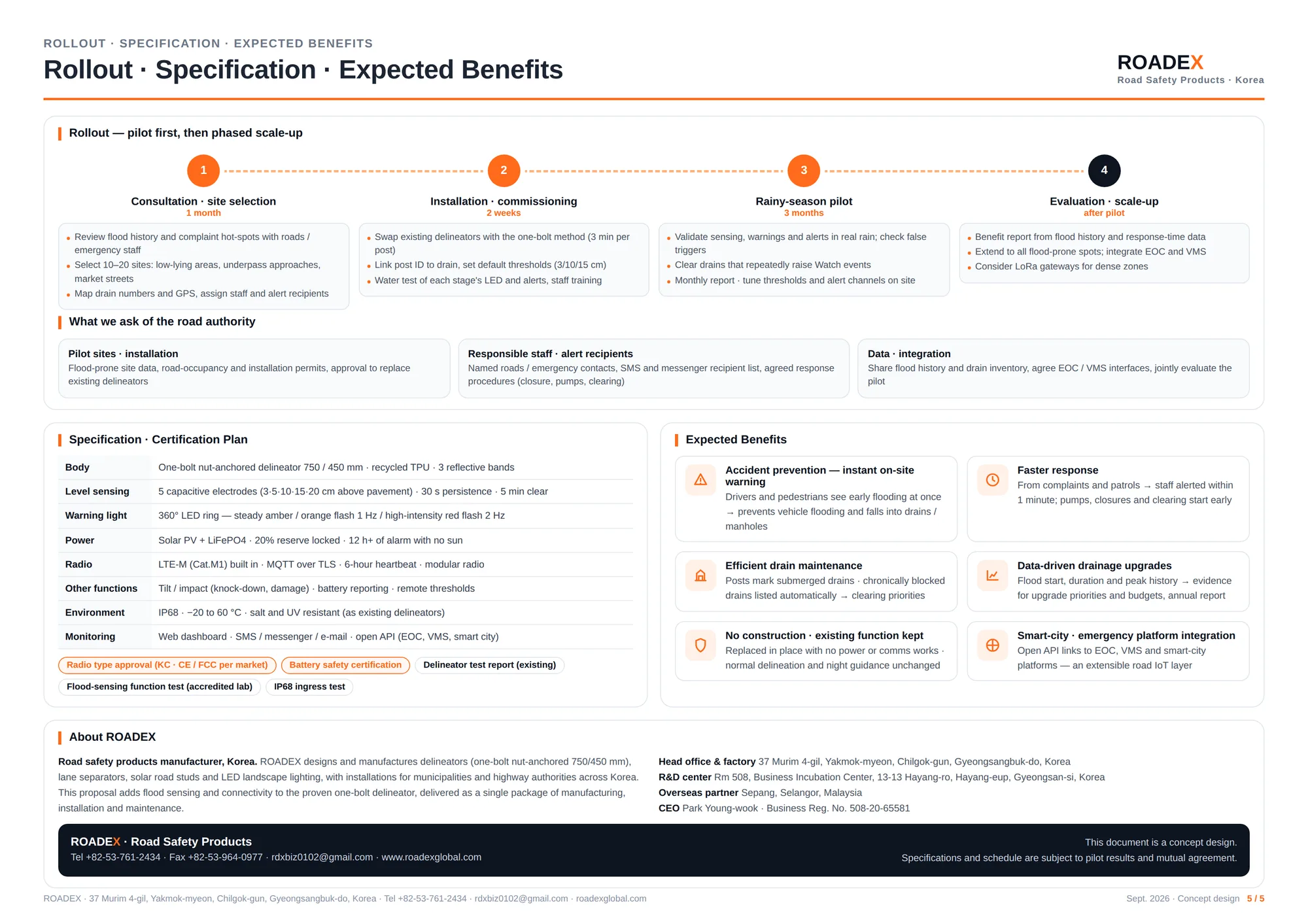

Page 5 — Rollout · Specification · Benefits
5. Rollout · Specification · BenefitsPilot procedure, specification and certification plan, benefits, about ROADEX

Click a page to enlarge · use the PDF for printing
